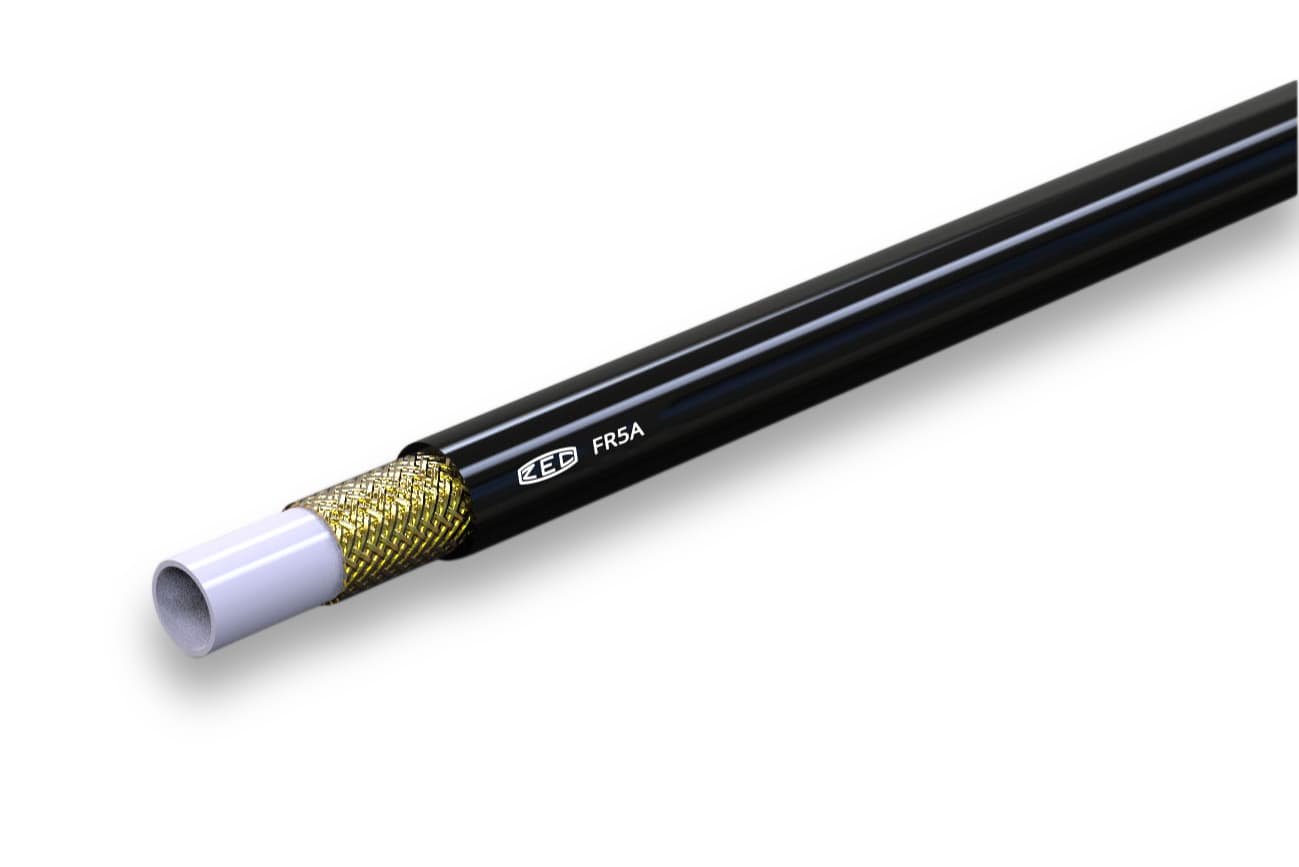

ZEC has conducted an intensive research into sustainable and energy-efficient solutions for HVAC. Recognizing the shift toward ecological responsibility, ZEC has developed a special hose series with a steel braided reinforcement. The FR5A hoses resist to a pressure of 130 bar and a peak temperature of 150°C, meeting thus the requirements of R744 applications, optimizing the performance of the entire system.

Technical features:

- Technical-constructive features: Steel braided coextruded hoses. Designed for CO2 Applications in industrial and commercial refrigeration systems.

• Working temperatures: From -40°C to +120°C from -40°F to +248°FMax. peak temperature 150°C / 302°F

• Working pressure: 130 bar. Safety ratio exceeding EN 1736 and ISO 13971 class 1 requi ...
