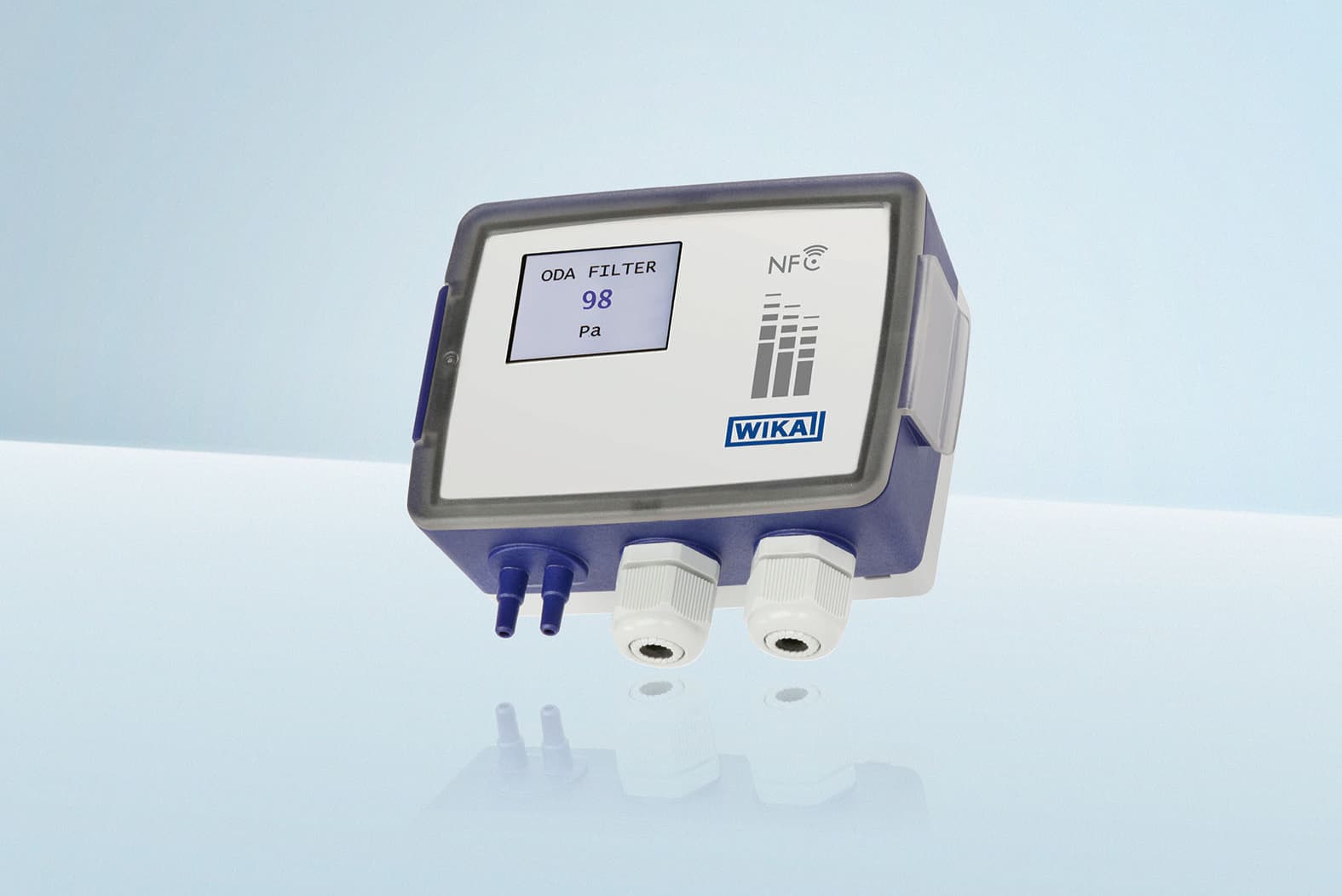

Differential pressure sensor Model A2G-500 for ventilation & air-conditioning
Key Facts
- IIoT-ready and future-proof thanks to analogue and digital signal transmission (Modbus®) as well as wireless (LoRaWAN®)
- Time-saving instrument configuration and display of current measured values on the smartphone via NFC or WIKA app No cabling effort for retrofit projects thanks to battery operation and LoRaWAN®
- Decentralised data node − up to four input signals − reduces cabling effort and installation costs
Categories
Sensors
Product information
Description
The model A2G-500 is used to measure differential pressure, gauge pressure and vacuum in air and also in non-aggressive and non-flammable gases in ventilation and air-conditioning systems.
The piezoresistive measuring element is temperature-compensated and particularly stable over the long term. It records even the smallest pressure differences and thus ensures high reliability and the highest measurement accuracy. The measured values are available as analogue voltage and current signals, digitally via the RS-485 interface using Modbus®RTU or via LoRaWAN®. Integration into any control system or directly into cloud solutions is therefore easily possible.
With relay outputs, the instrument becomes a cost-savi ...
