GEMINI N HP - Propan (R290) modular air-to-water heatpump
Key Facts

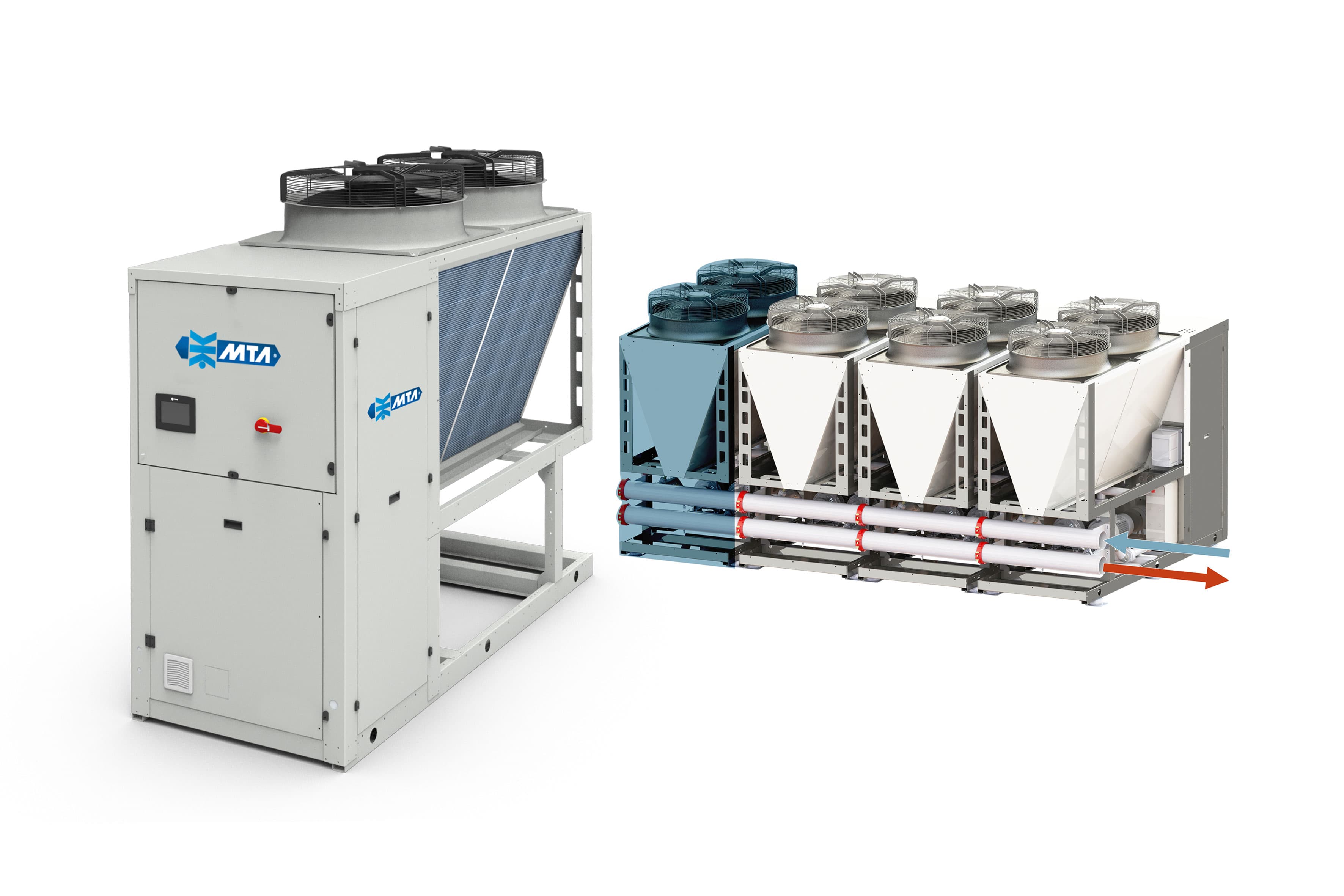

- The GEMINI N HP heat pump is based on a fully modular platform and enables rapid hydraulic connection as well as optimised electronic control of groups of up to six units. This delivers a heating capacity of up to 750 kW.
- With a hot water output of up to 77 °C, the GEMINI N HP operates reliably in challenging climatic conditions and offers continuous operation at ambient temperatures ranging from –20 °C to 45 °C. This makes the heat pump ideal for both new installations and for replacing existing boilers.
- The compact design makes it easy to transport, simplifies installation and allows for capacity expansion over time to adapt to the building’s changing requirements. The side-by-side configuration minimises the space required on site, whilst the low refrigerant charge per circuit enhances both safety and environmental performance.
Categories
Water chiller Heat pumps for industrial applications Heat pumps for drying Heat recovery Heat pumps for domestic hot water Heat pumps for buildings Air heaters / Air coolers Heat pumps for commercial applications
Product information
Modular propane heat pumps: air-cooled, with scroll compressors and the alternative refrigerant R290

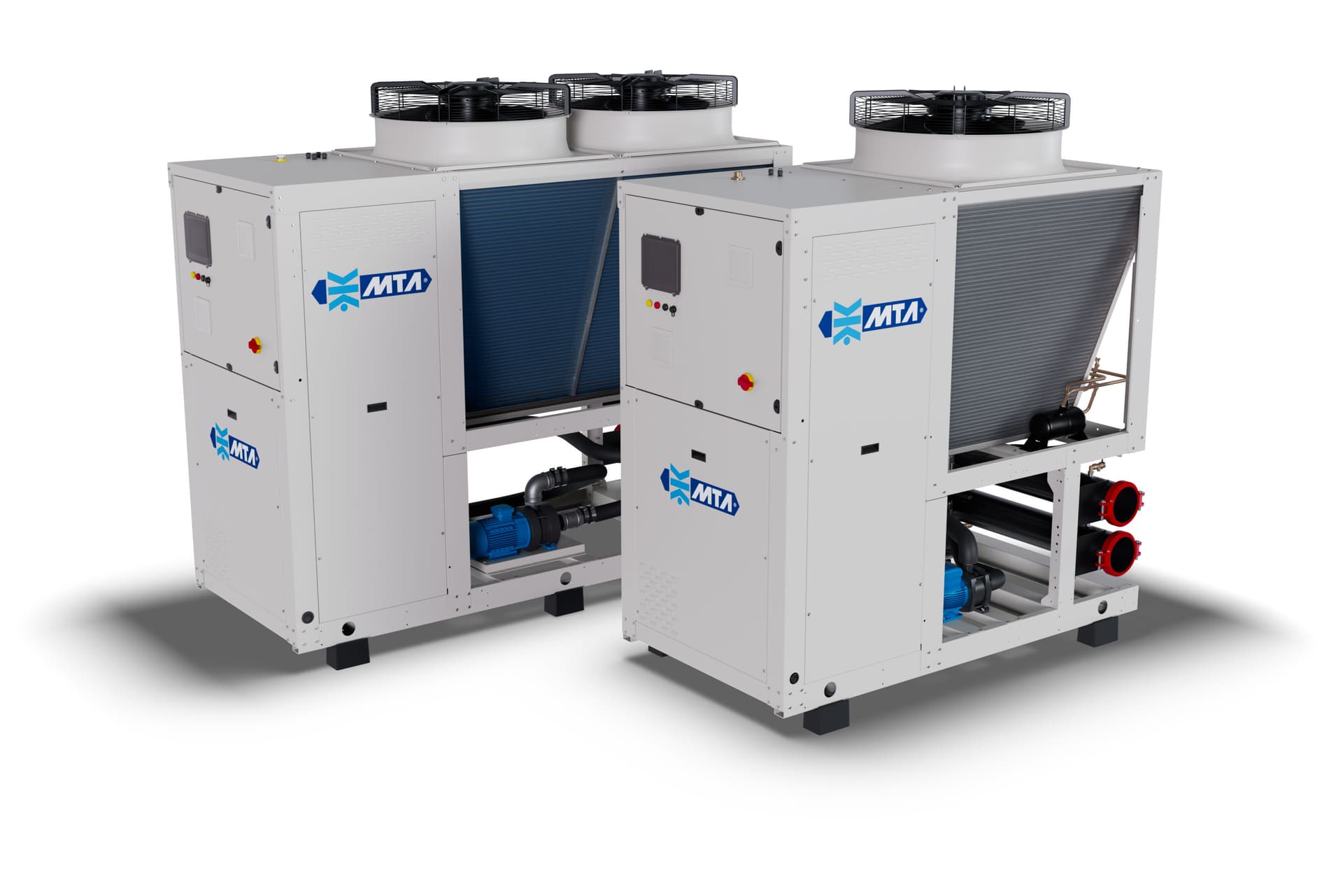

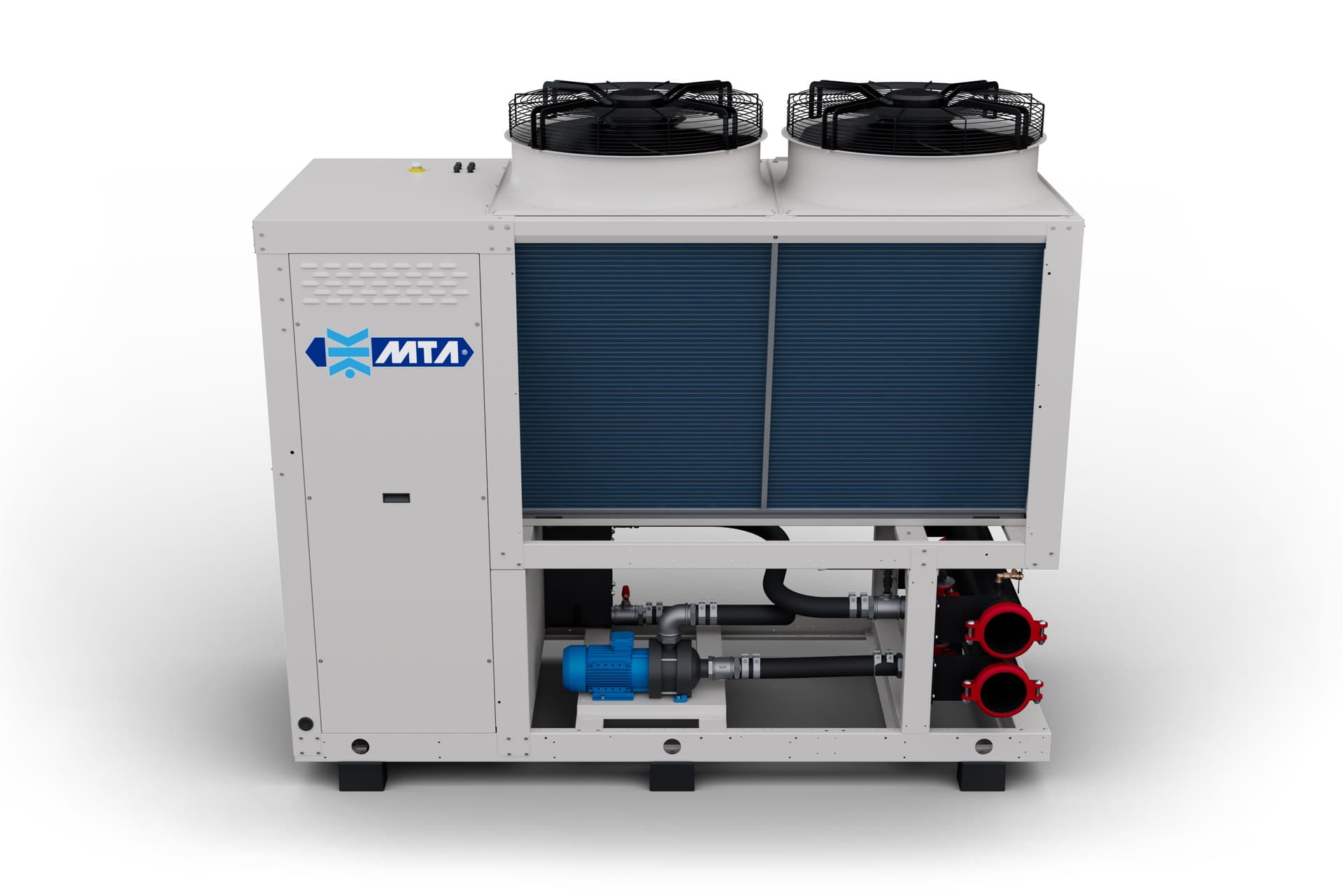

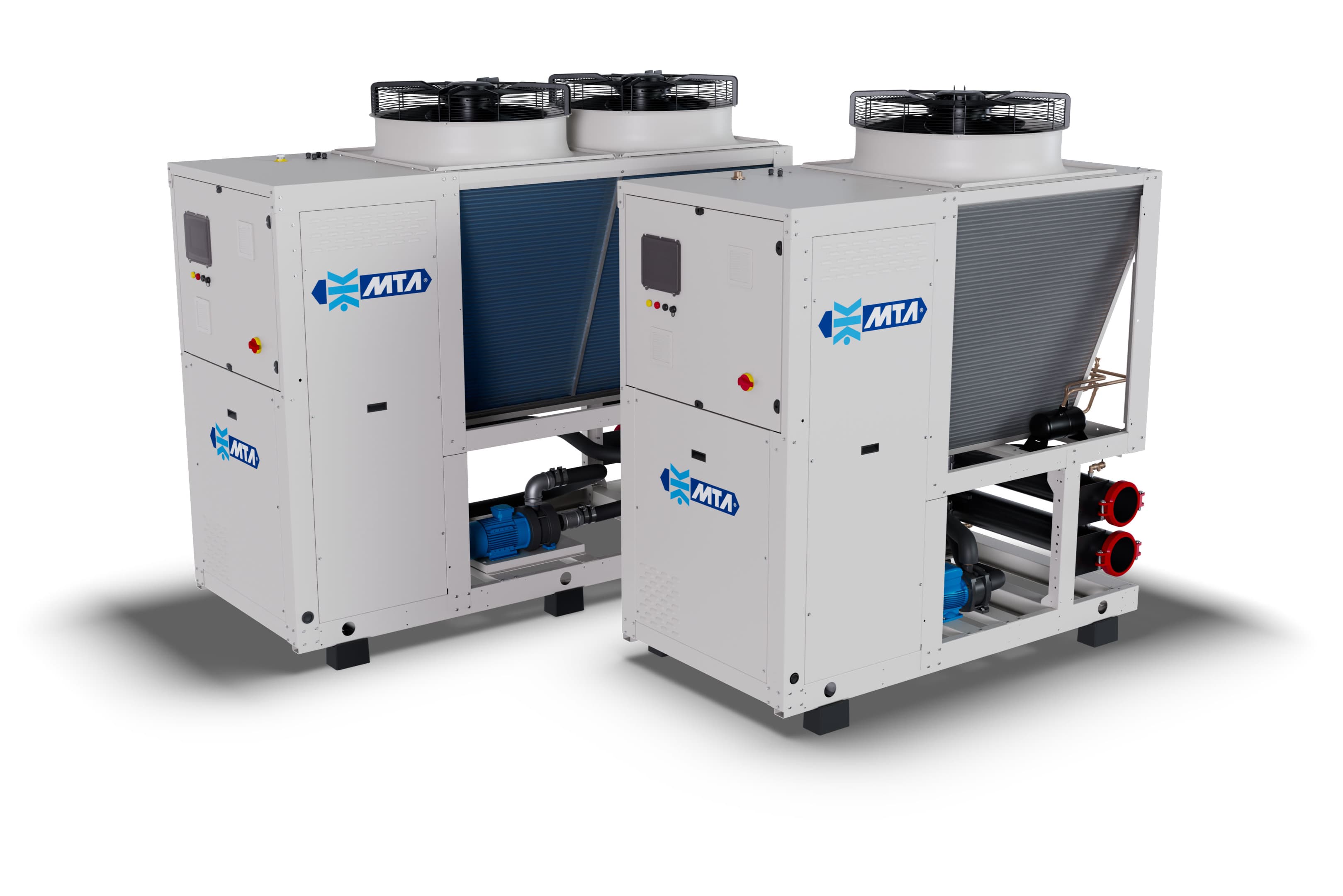

The GEMINI N HP is a modular air-to-water heat pump featuring full inverter scroll technology, available in four sizes. Thanks to its modular design, it achieves heating capacities of over 700 kW.
Designed for use in any climate
With domestic hot water output of up to 77 °C, the GEMINI N HP operates reliably in challenging climatic zones and offers continuous operation at ambient temperatures ranging from –20 °C to 45 °C. This makes the heat pump ideal for both new installations and the replacement of existing boilers.
Efficiency that sets new standards
Offers first-class seasonal efficiency for both heating and cooling, with SCOP values of up to 4.5. T ...Download
