Key Facts
- IATF 16949 certified quality for automotive, heat exchanger, cooling and HVAC applications
- Strong production capabilities (welding, sawing, forming, fin/turbulator insertion), producing over 50 million tubes annually
- Extensive technical expertise and long-standing cooperation with OEMs and Tier-1 suppliers
Categories
Chilled ceilings Scroll compressors Oil separators Oil coolers Induction units Reciprocating compressors Rolling piston compressors Condensing units Cross flow fans Motors Condensers Water recoolers (cooling towers) Horizontal collectors Convectors Pressostats / Thermostats
Product information

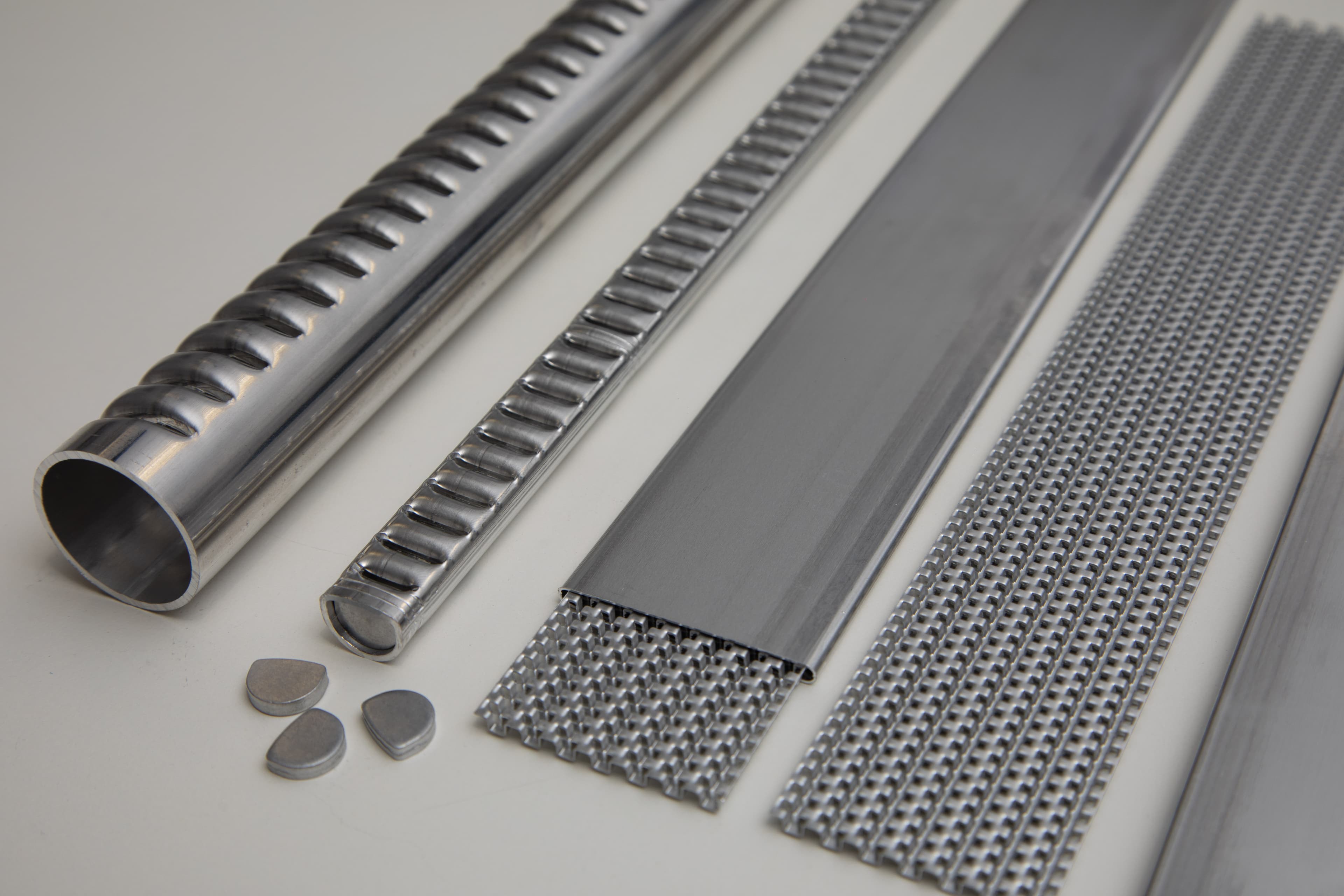

- Round Tubes: Ø 8–45 mm | Wall thickness 0.6–2.2 mm
- Square/Rectangular Tubes: 10–105 mm | Wall thickness 0.35–1.5 mm

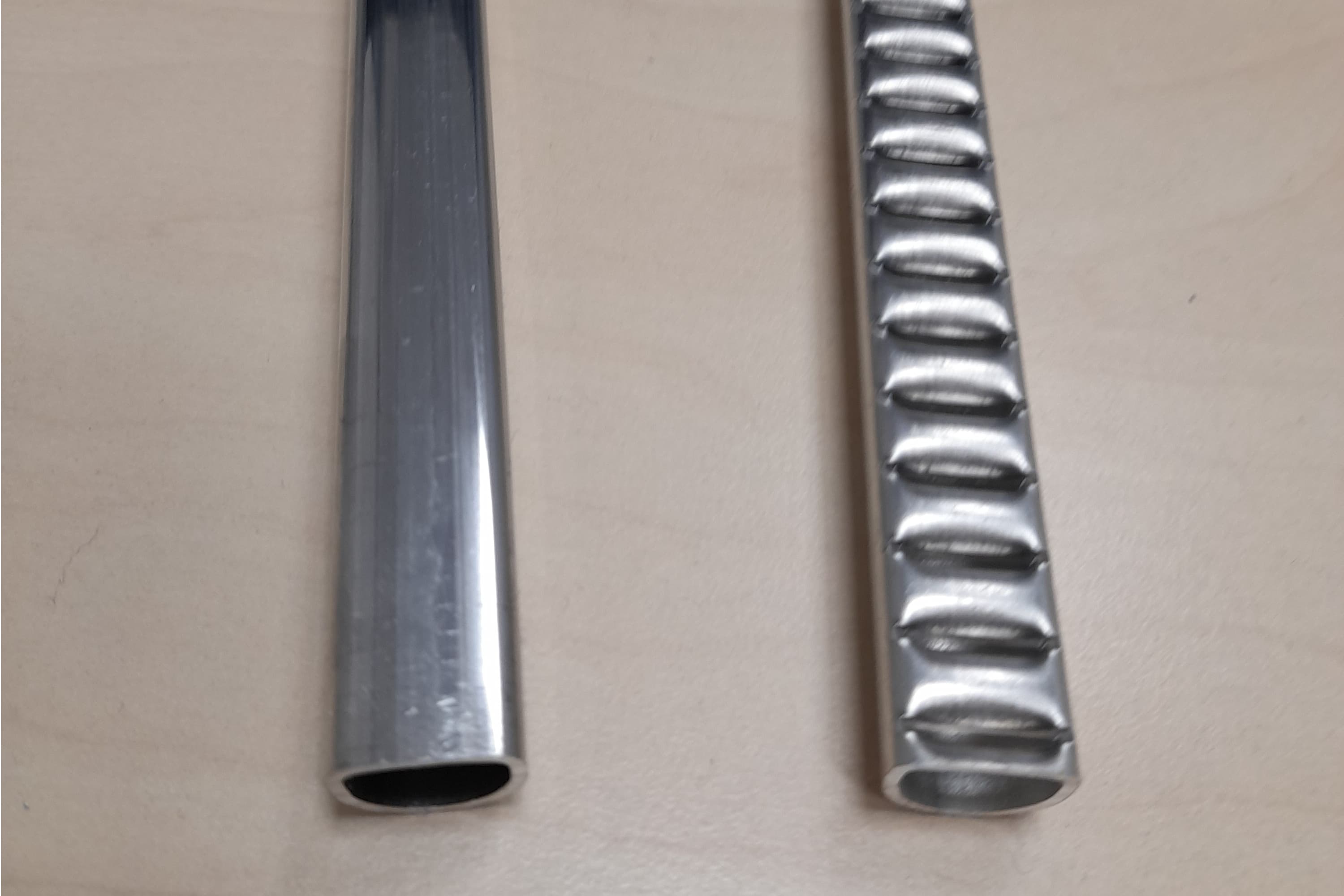

- Flat Oval Tubes: 12–80 mm | Wall thickness 0.25–0.6 mm
- D-Shape Tubes: 12–25 mm | Wall thickness 1.0–2.0 mm
- Dimple & Double Chamber Tubes: on request

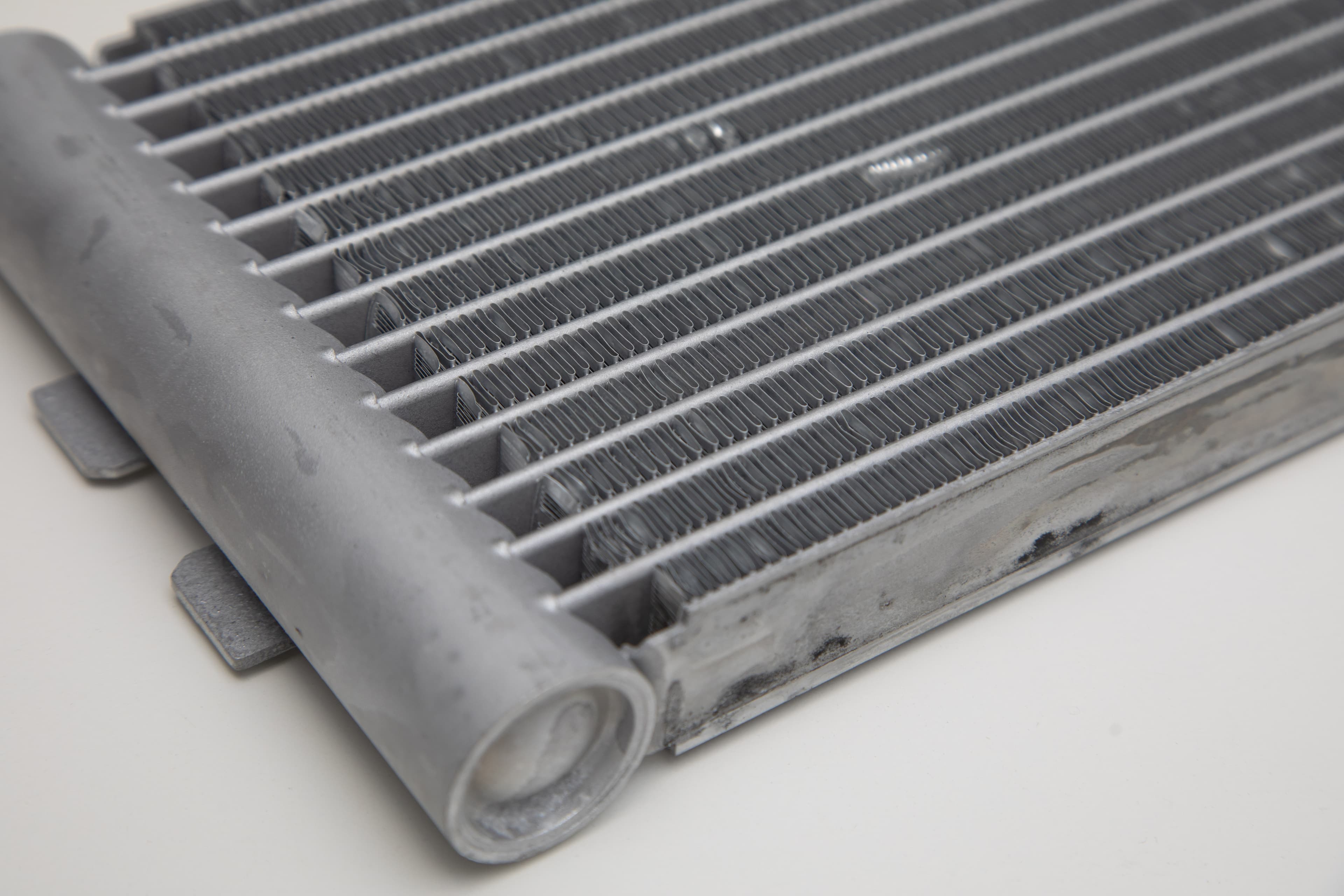

- Manifolds (Condenser & Battery Cooler): on request
- Oil Cooler Tubes with Turbulators: on request
- Tube Lengths: 80–5,500 mm
