FCM2630-L0 – Compact R32 Refrigerant Gas Sensor Module (Tentative)
Key Facts
- Compact R32 refrigerant module under development for embedded HVAC-R leak-detection systems.
- 4.2% LFL alarm setpoint and response within 27 seconds at 25% LFL under the specified test condition.
- Dual-element 15-year design life with open-collector status, alarm, fault and service-life outputs.
Categories
Sensors Monitoring systems Gas detection systems
Product information

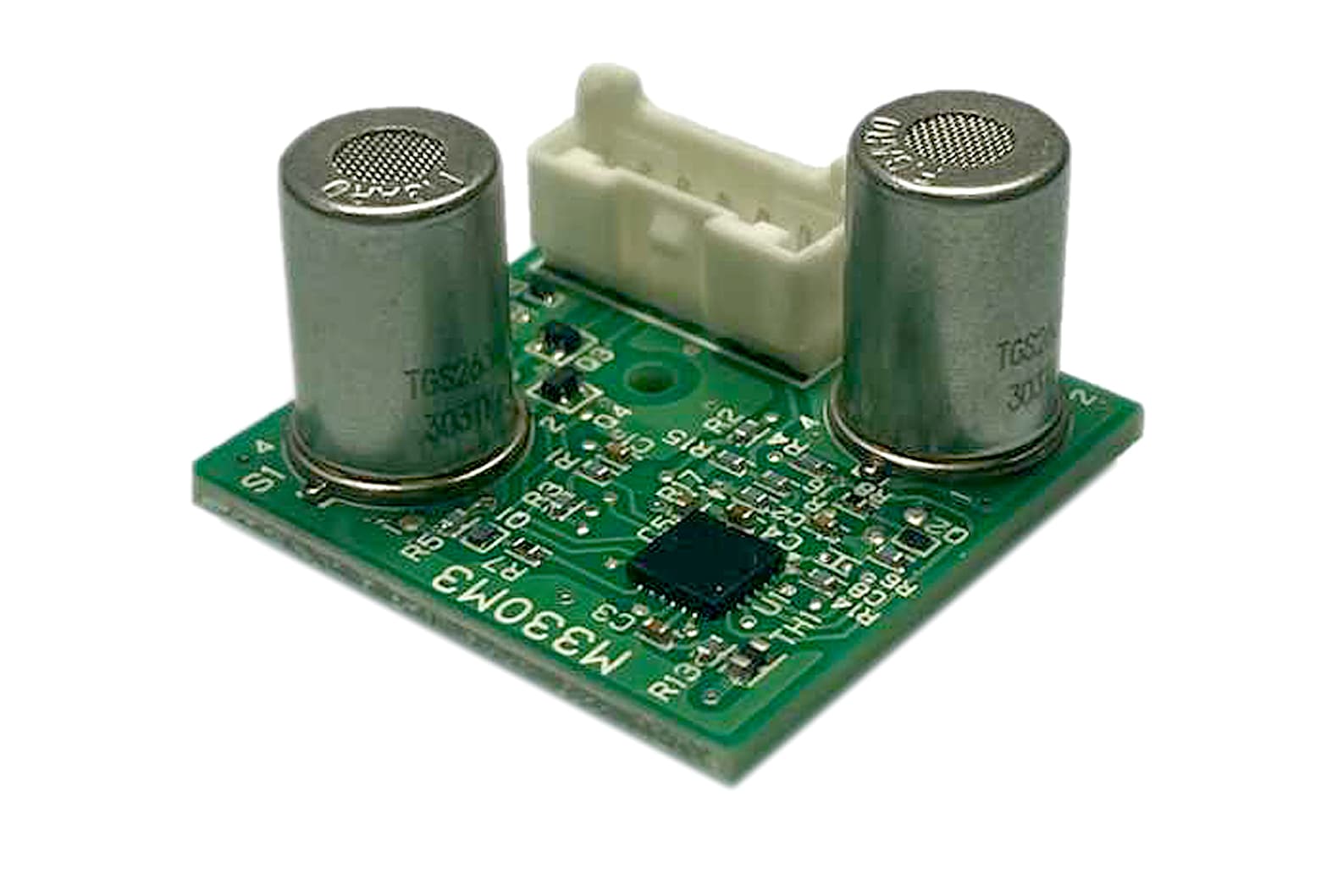

The FCM2630-L0 is Figaro’s compact semiconductor gas sensor module under development for detecting R32 refrigerant leaks in air-conditioning and refrigeration equipment. With dimensions of only 26 × 26 × 16 mm, the module is designed for space-constrained OEM installations while retaining the long-life performance required for embedded leak-detection systems.
The module has a declared alarm setpoint of 4.2% LFL (6,048 ppm) R32 and responds within 27 seconds at 25% LFL under the specified test condition. It operates from 5 V DC across - 30 to 50 °C and 0 - 95% RH, with a warm-up time of approximately 60 seconds. Two sensing elements provide a stated 15-year design life (7.5 years × 2). Separate open-collector outputs communicate operating and alarm status, malfunction indicati ...
